EUROSMOKE FZ 1000
Professional Continuous Output Haze Machine
The EUROSMOKE FZ 1000 is a next-generation professional haze machine designed to create a perfectly uniform and controlled atmosphere. Inspired by the robust design of the EUROSMOKE 1000, it maintains the same high quality standards while integrating continuous output and precise control of both haze density and projection distance. It is the ideal solution for enhancing light beams, laser effects and professional stage environments.
Thanks to its powerful and adjustable internal fan, the EUROSMOKE FZ 1000 allows precise control of haze distribution and projection range. Its fully removable and cleanable heater block ensures easy maintenance and consistent long-term performance. The machine also features advanced electronic management and full DMX 512 compatibility with RDM feedback, enabling remote monitoring and diagnostics for optimized professional operation.
EUROSMOKE FZ 1000
EUROSMOKE FZ 1000
Professional Continuous Output Haze Machine
The EUROSMOKE FZ 1000 is a next-generation professional haze machine designed to create a perfectly uniform and controlled atmosphere. Inspired by the robust design of the EUROSMOKE 1000, it maintains the same high quality standards while integrating continuous output and precise control of both haze density and projection distance. It is the ideal solution for enhancing light beams, laser effects and professional stage environments.
Thanks to its powerful and adjustable internal fan, the EUROSMOKE FZ 1000 allows precise control of haze distribution and projection range. Its fully removable and cleanable heater block ensures easy maintenance and consistent long-term performance. The machine also features advanced electronic management and full DMX 512 compatibility with RDM feedback, enabling remote monitoring and diagnostics for optimized professional operation.
Description
Technology and Features
Continuous and Adjustable Output
The EUROSMOKE FZ 1000 produces a fine, stable and uniform haze with adjustable output from 1% to 100% in 1% steps, allowing precise control of atmospheric density.
High-Performance Internal Fan
Equipped with a 200 m³/h internal fan, adjustable from 1% to 100%, the machine allows you to adapt projection distance and haze coverage according to the size and configuration of the venue.
Intuitive User Interface
The LCD display with navigation wheel provides fast and intuitive access to all settings, whether in standalone operation or in complex stage environments.
Advanced Control and Connectivity
The EUROSMOKE FZ 1000 offers multiple control options:
- Manual control
- RF remote control
- DMX 512 with RDM protocol for real-time feedback (status, diagnostics, parameters)
- Timer mode for automated haze output
An optional WiFi DMX Remote module is also available for wireless control.
Intelligent Safety and Protection
The machine integrates several protection systems to ensure safe and reliable operation:
- Microprocessor-controlled temperature management
- Heater block protection via thermostat
- Thermal pump protection
- Integrated 6A fuse
Technical Specifications
Model: EuroSmoke FZ – 1000
Device Type: Haze Machine
Reference: 150ESM1208
Power Supply: 230V – 50Hz
Power Connector: PowerCon True1
Power Requirement: 1120 W
Heating Time: Approx. 10 minutes
Protection Rating: IP20
Fuse: 6A
Heater Block Protection: Thermostat
Temperature Control: Microprocessor controlled
Pump Protection: Thermal switch
Tank Capacity: 5 L
User Interface: LCD display with navigation wheel and adjustment
DMX Interface: 5-pin XLR In/Out – 4-pin XLR In
Control Modes: Manual / RF Remote / DMX 512 (RDM) / Timer
Optional Accessory: WiFi DMX Remote
Internal Fan: 200 m³/h
Fan Output Adjustment: 1% to 100% in 1% steps
Haze Output Adjustment: 1% to 100% in 1% steps
Fog Mode: Continuous output (non-stop mode)
Fluid Consumption: 20 ml/min at 100% continuous output
Compatible Fluid Type: E-Smoke water-based hazer fluid

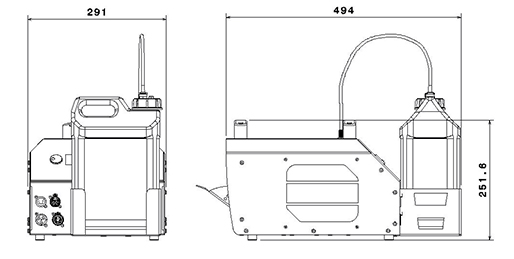

Dimensions:
- Length: 494 mm
- Width: 291 mm
- Height: 252 mm
Weight: 12 kg
Operating Ambient Temperature: +5 °C to +45 °C
Operating Humidity: 20% to 90% (non-condensing)
With its professional design, high performance and advanced control capabilities, the EUROSMOKE FZ 1000 stands out as a reference solution for any environment requiring a reliable, precise and durable haze machine.
